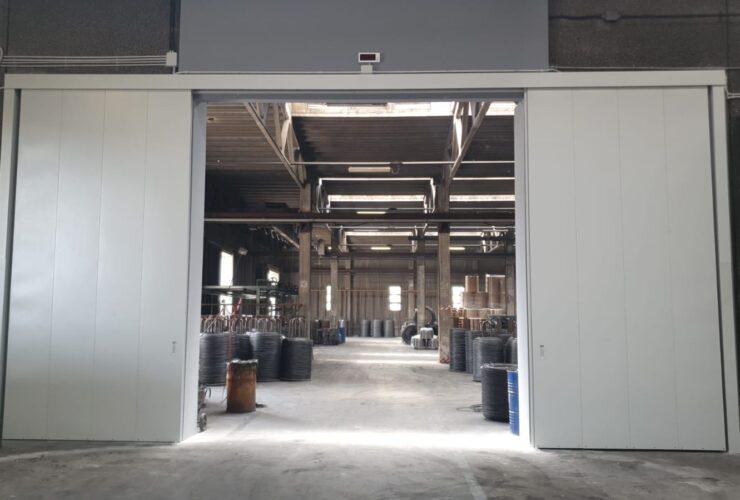

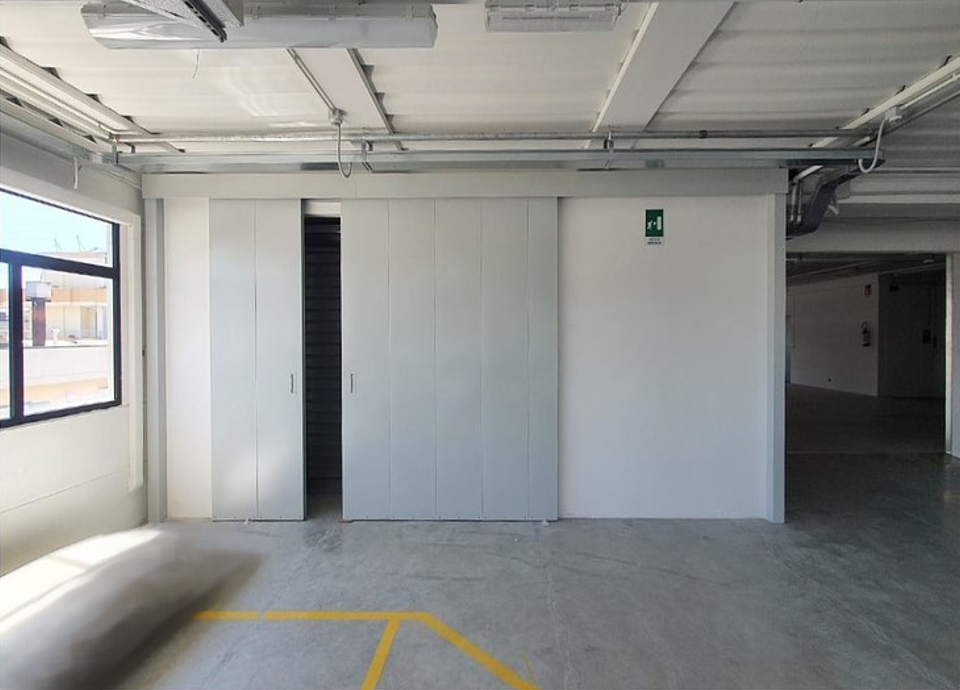

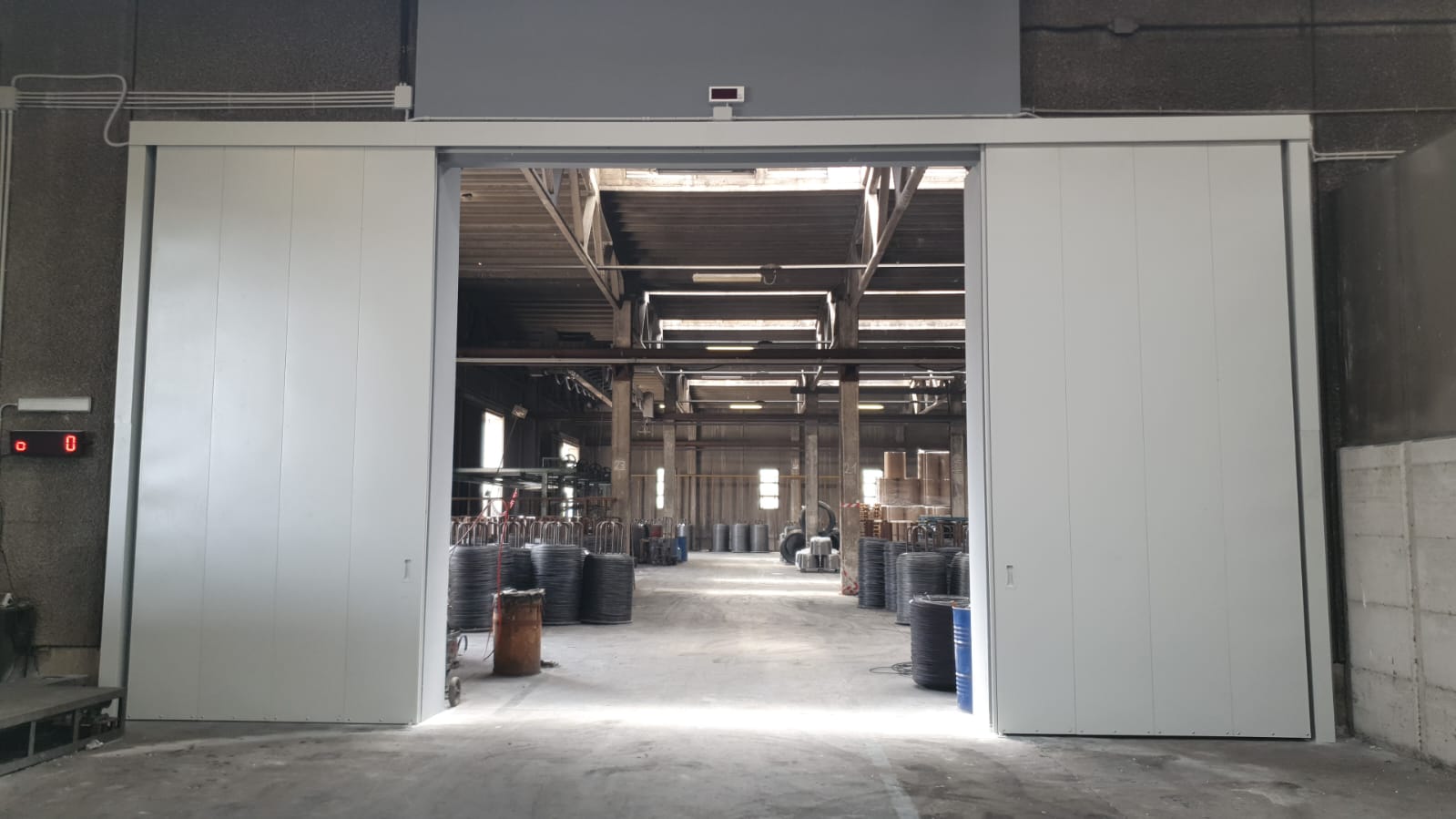

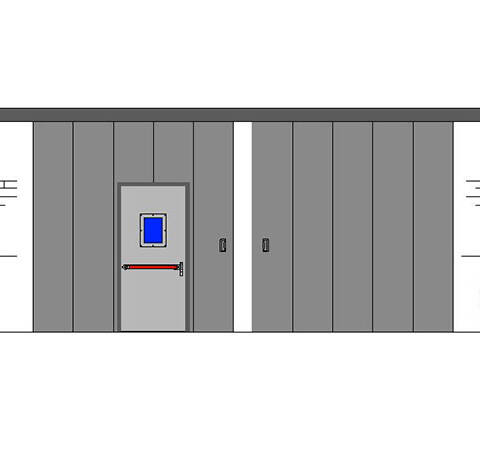

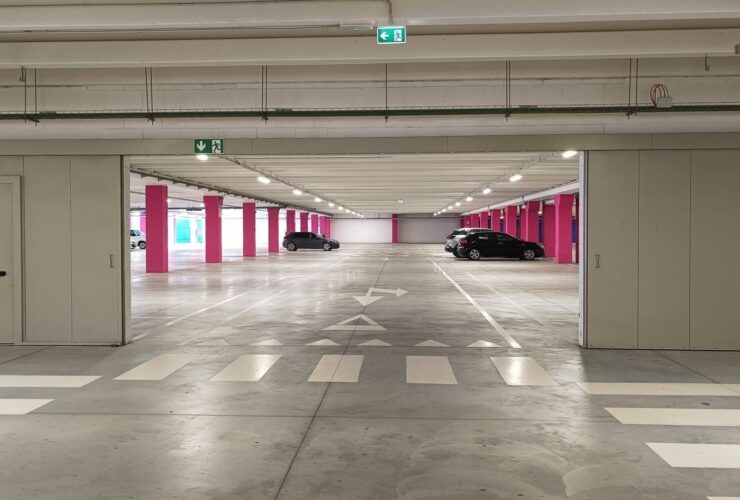

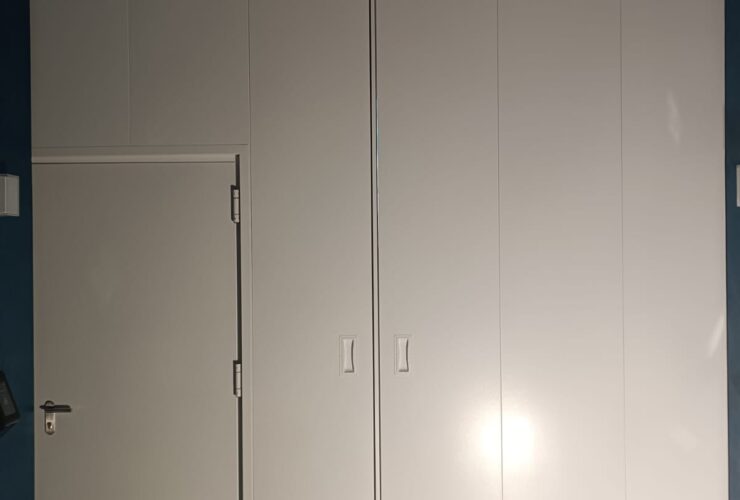

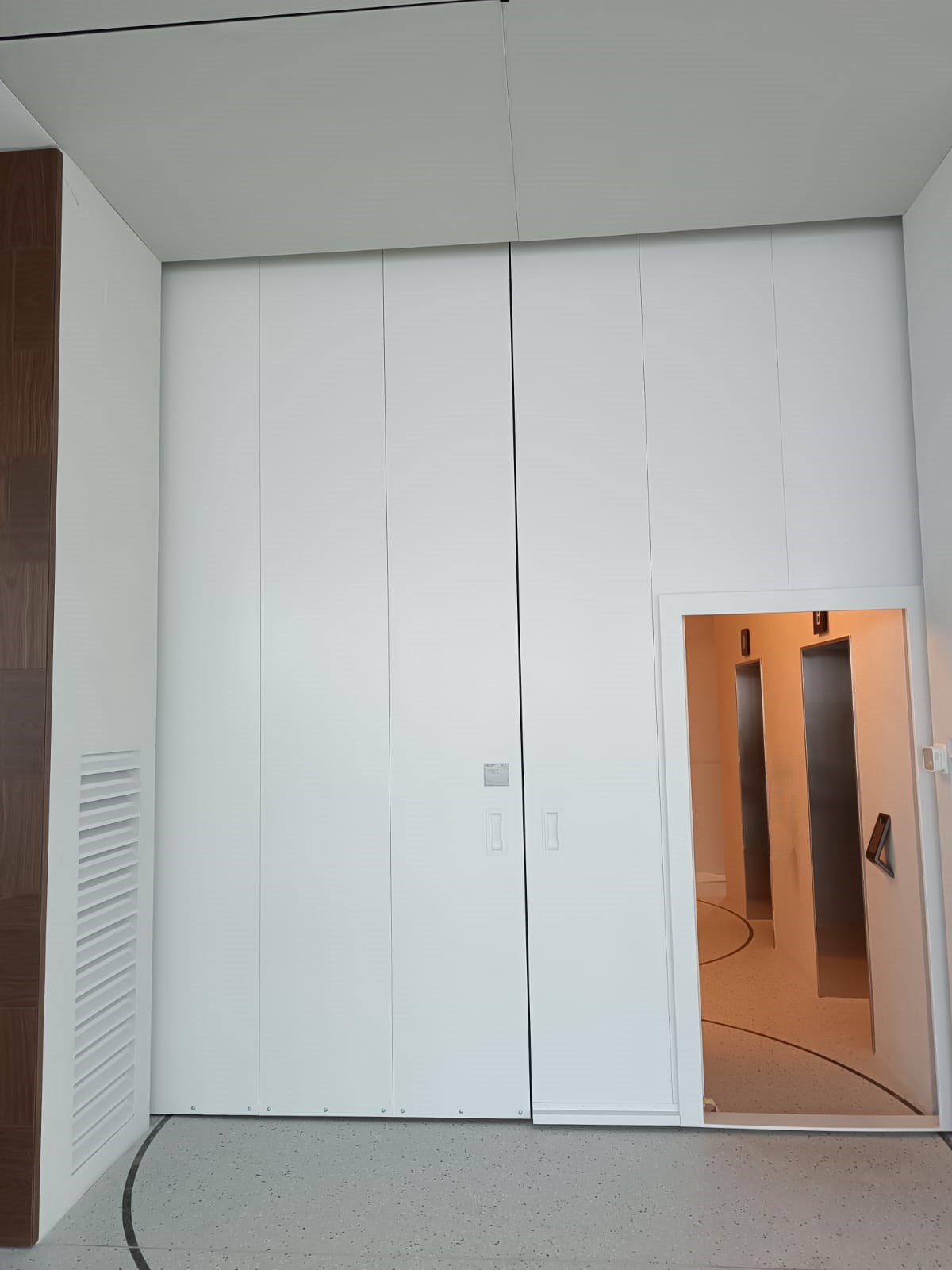

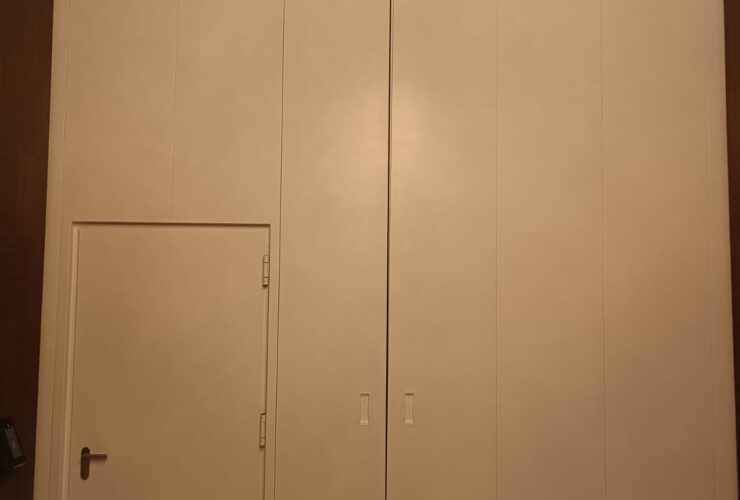

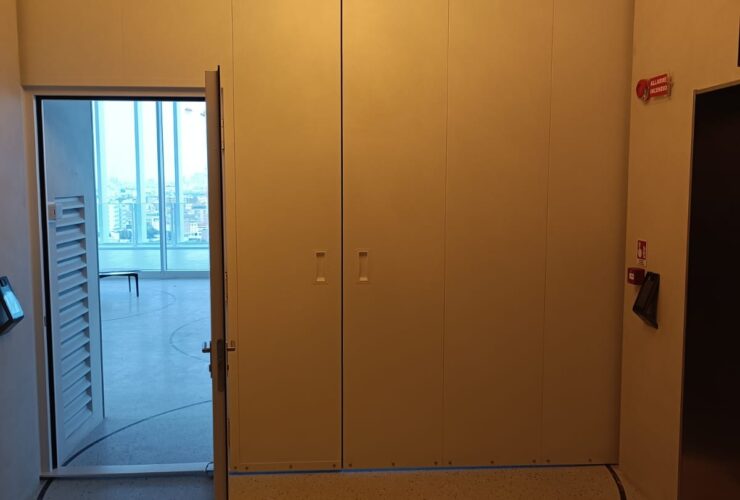

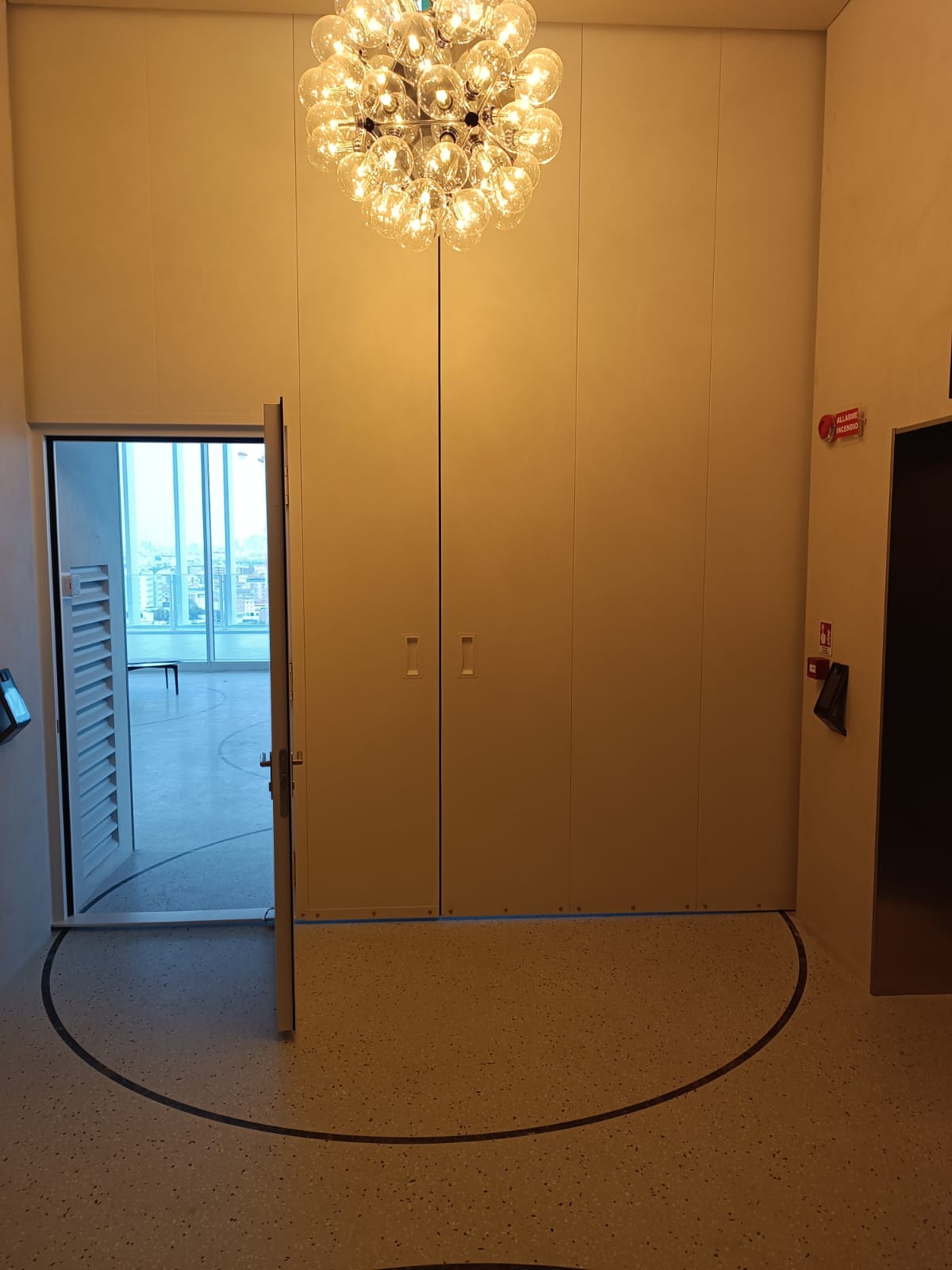

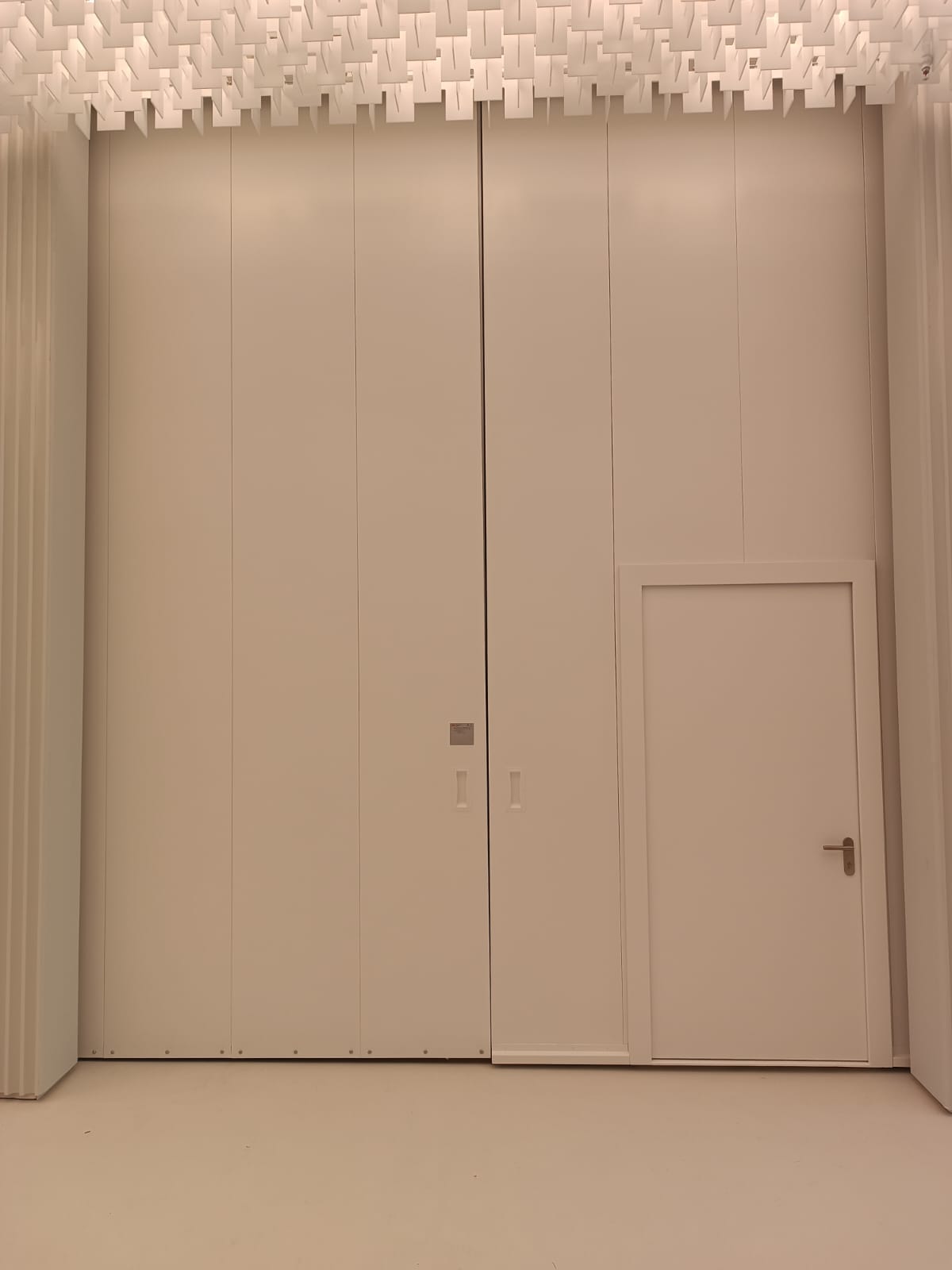

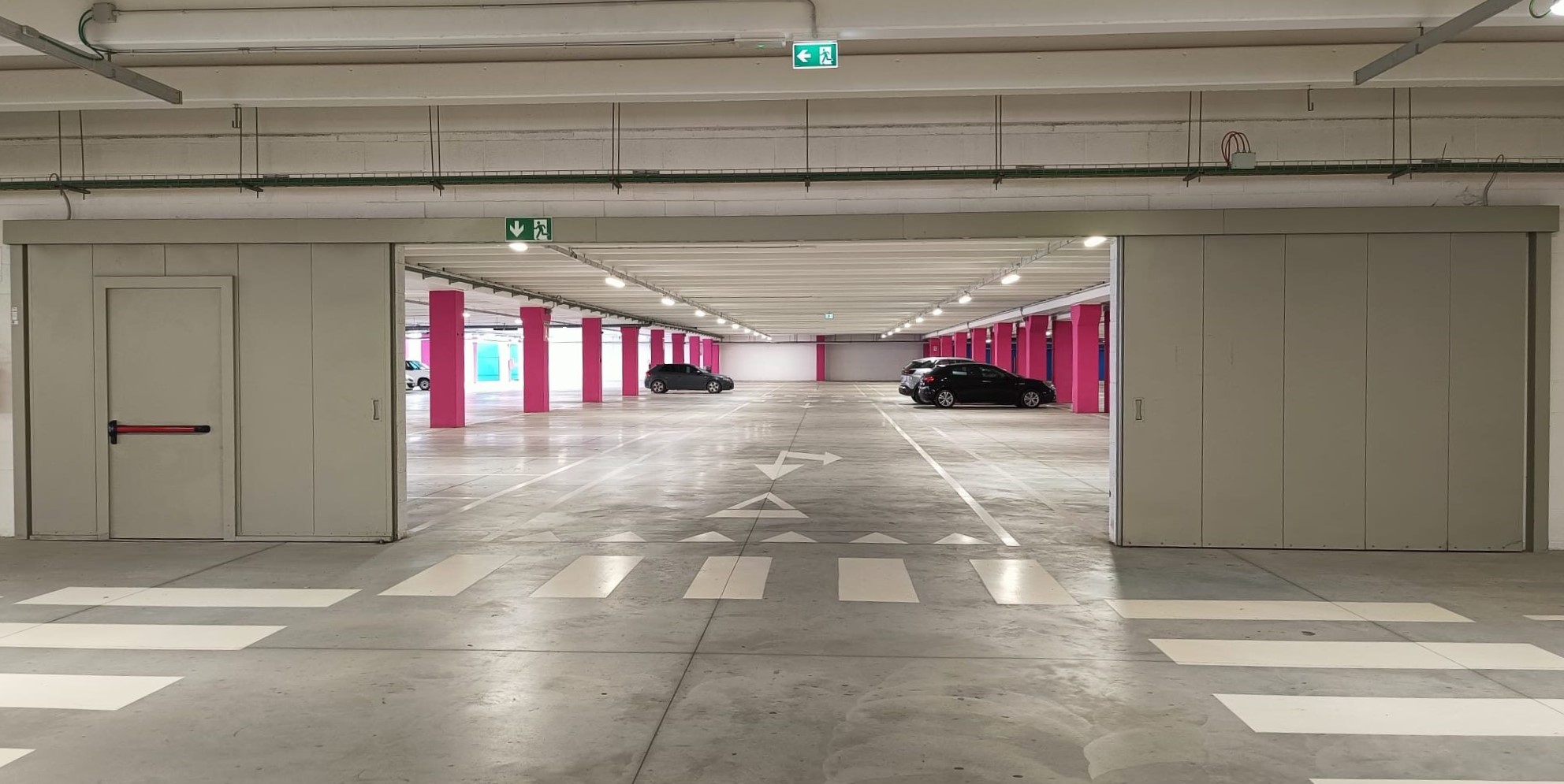

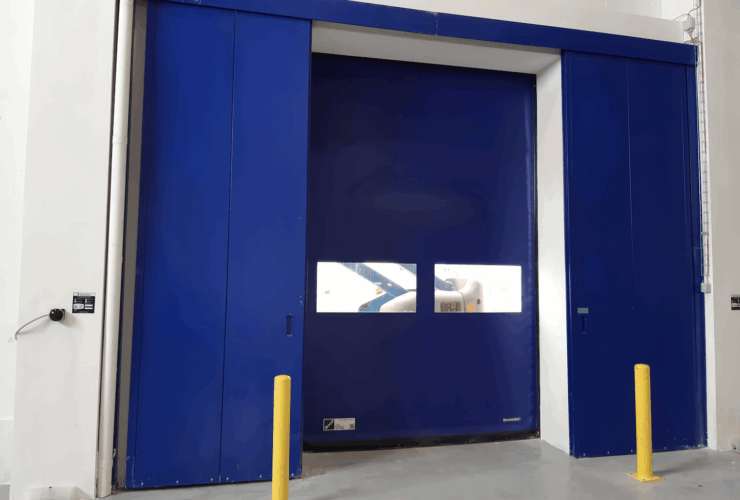

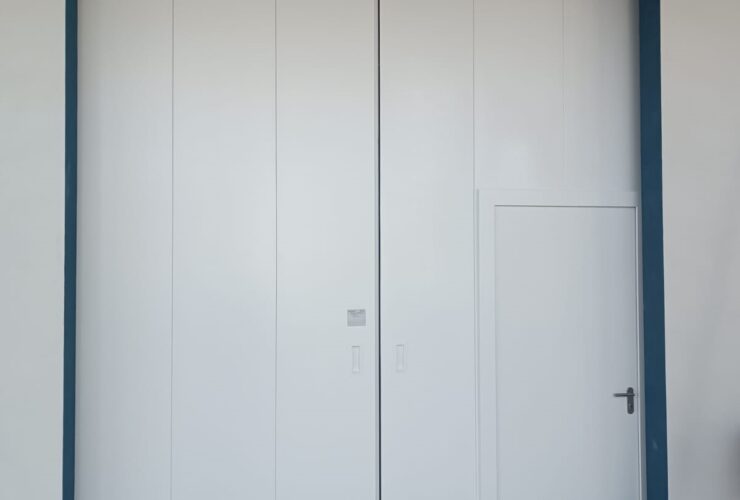

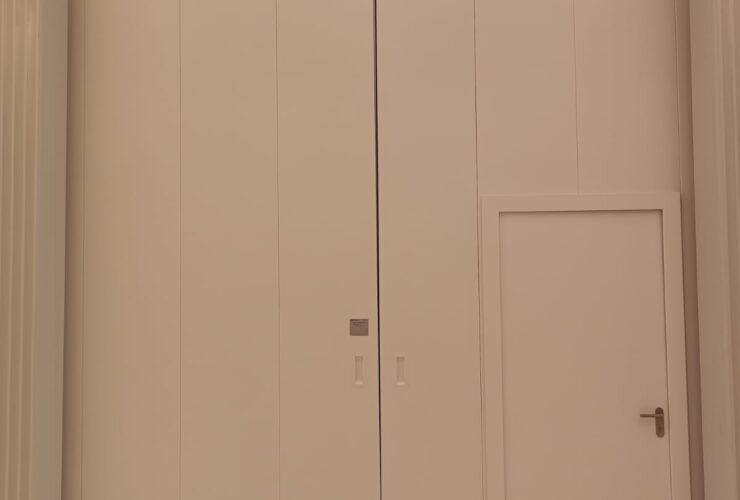

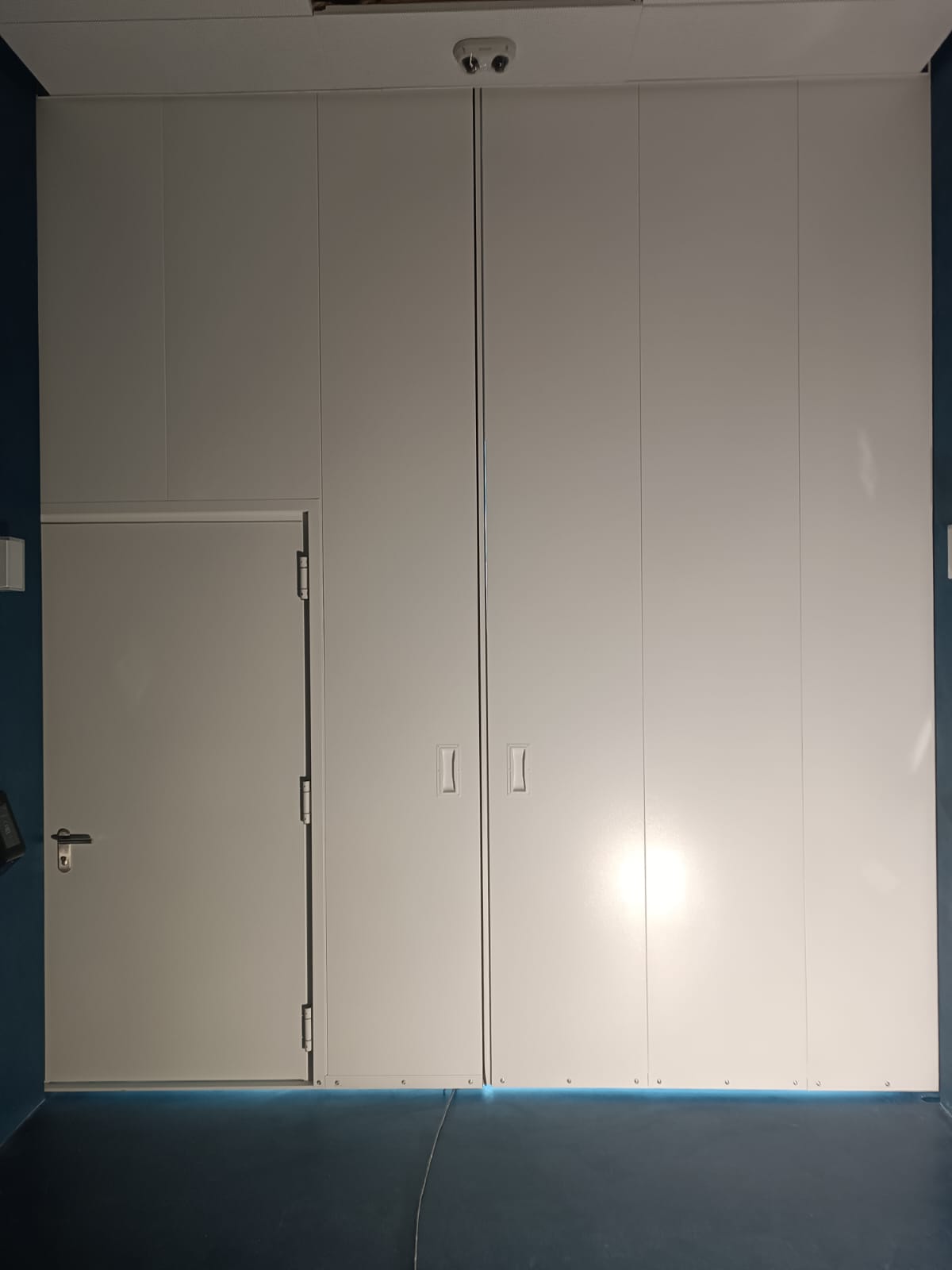

Sliding Door EI 120 2 leaves with pedestrian door (Crosswalk 120) –

Fael Security

Compliant with EN 16034:2014 e 13241:2016 and EN 1634-1 regulations.

Made of:

  • SHEETS: sheets to be assembled, 80 mm total thickness. Separate sheets to be assembled.
  • INSULATION: internal insulation made of high-density hard sheets to shape a monolithic structure.

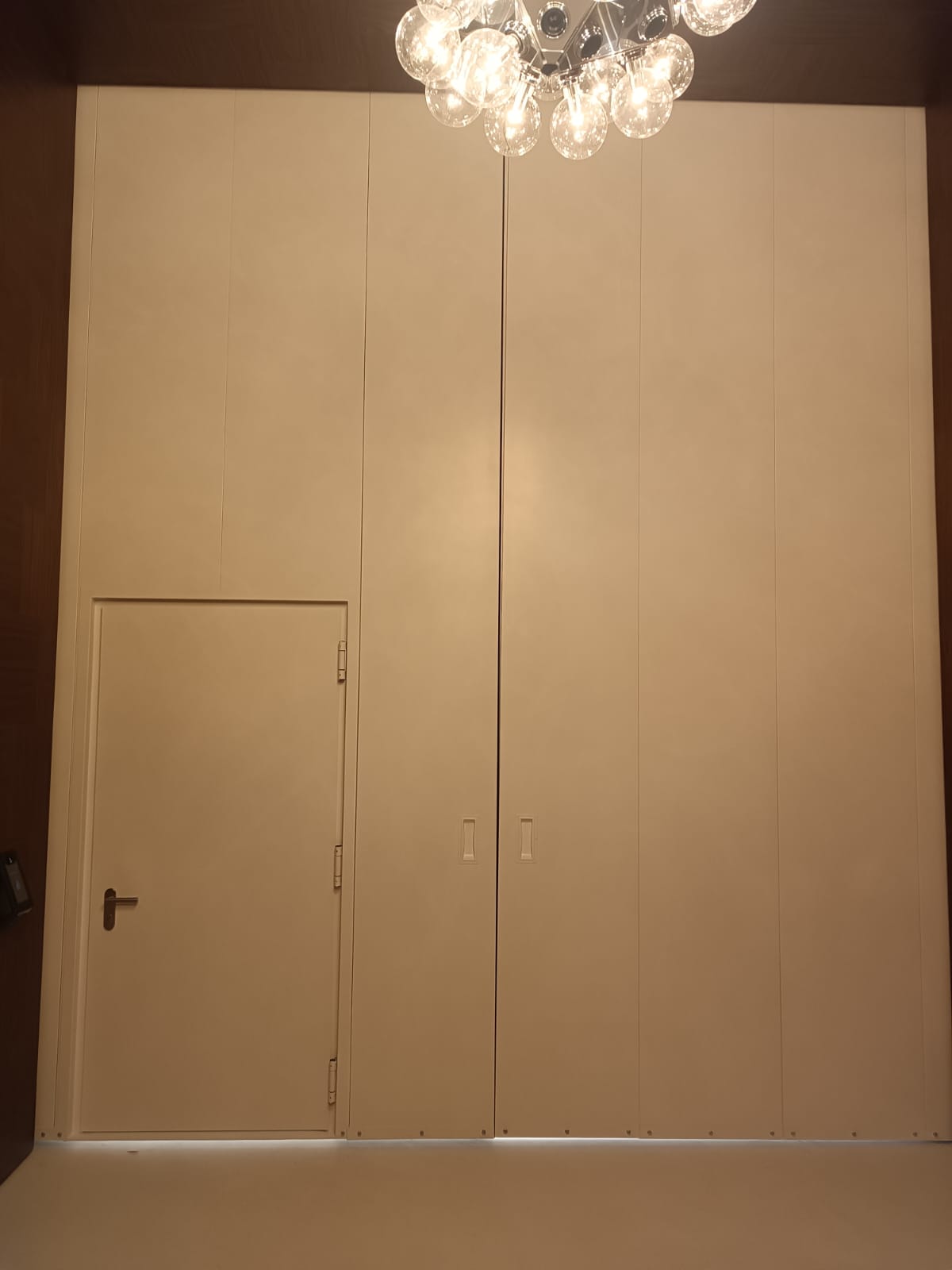

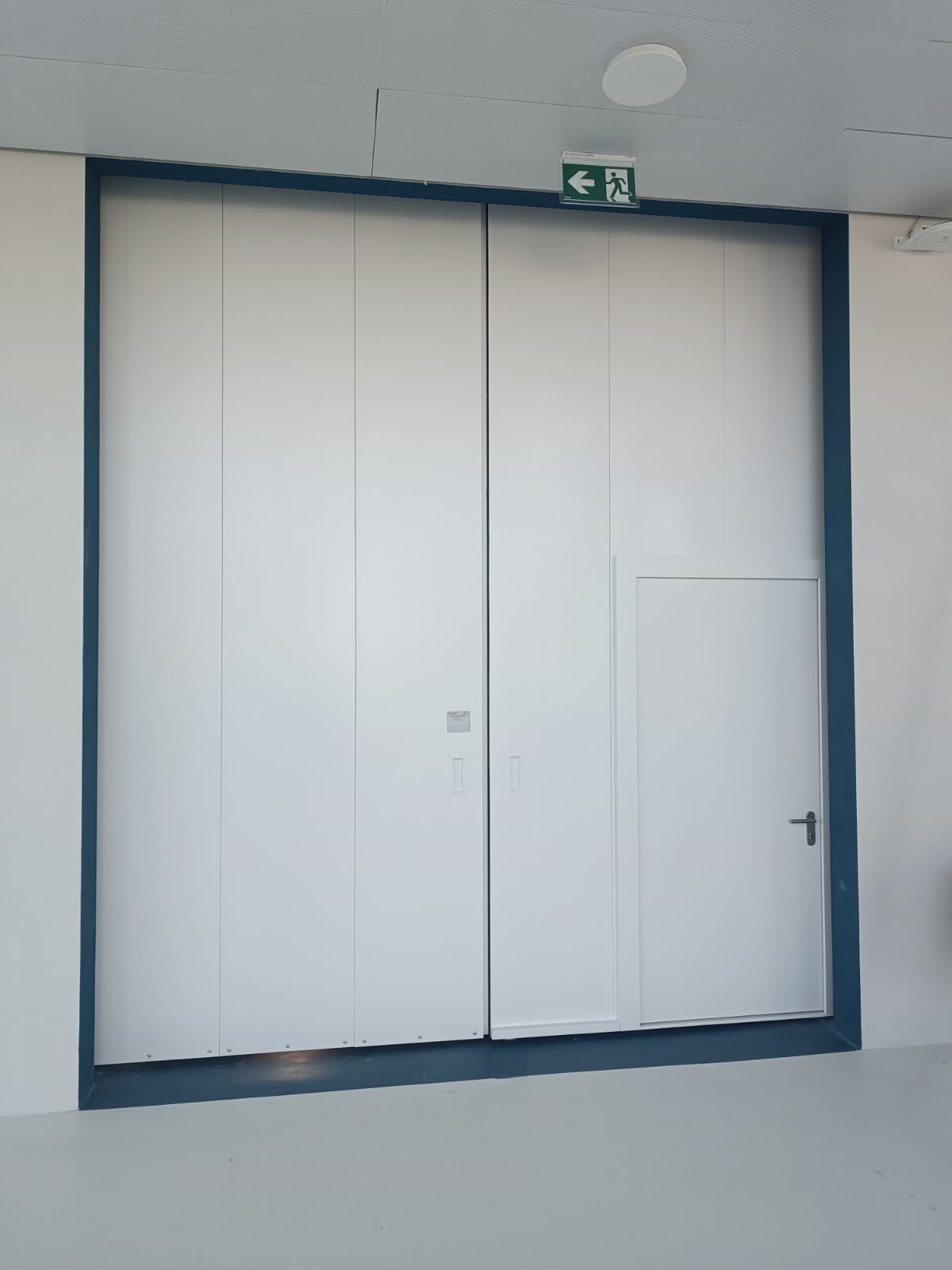

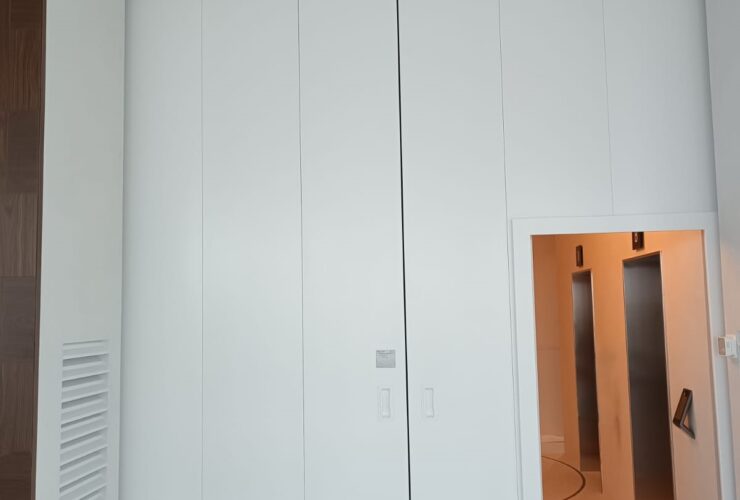

  • PEDESTRIAN DOOR: leaf embedded.
  • LABYRINTH: profiled steel section edge seals with self-thermo-expanding seals, pre-drilled holes to be installed on the wall by expandable dowels (not included).
  • UPPER MONORAIL: horizontal sliding monorail made of press bent steel, 40/10 thickness and pre-drilled holes to be installed on the masonry by expandable dowels (not included).
  • HANGERS: sliding on double ball bearing.
  • GUIDE TRACK:  lower track shaped within the sheet where the floor anchored guide roller slides.
  • CARTER: guide track cover made of press bent steel sheet (for upper monorail).
  • COUTERWEIGHT: for closure, protected by press bent steel sheet carter and pre-drilled holes to be installed on the masonry by dowels (not included).
  • HANDLE: recessed handle on both sides of the leaves.
  • SEAL: seal placed on the labyrinth, the guide track, the hangers and the counterweight.
  • OPERATION: standard with electromagnet.
  • PAINTING: RAL 7035 embossed epoxy powder (light grey).

ACCORDING TO THE NORMS UNI EN 16034:2014 et 13241:2016

CE MARKING – DECLARATION OF PERFORMANCE (Dop)

FIRE RESISTANCE EN 1634-1 EI2 120
WIND RESISTANCE EN 12444-13241 4
HEAT TRANSMISSION VALUE EN 12428-EN13141 1,21W/m2 K
MECHANICAL ASPECTS EN 13241 PASSA
SMOKE SEAL “Sa” EN 1634-1 Sa
DURABILITY EN 12604-12605 C3
